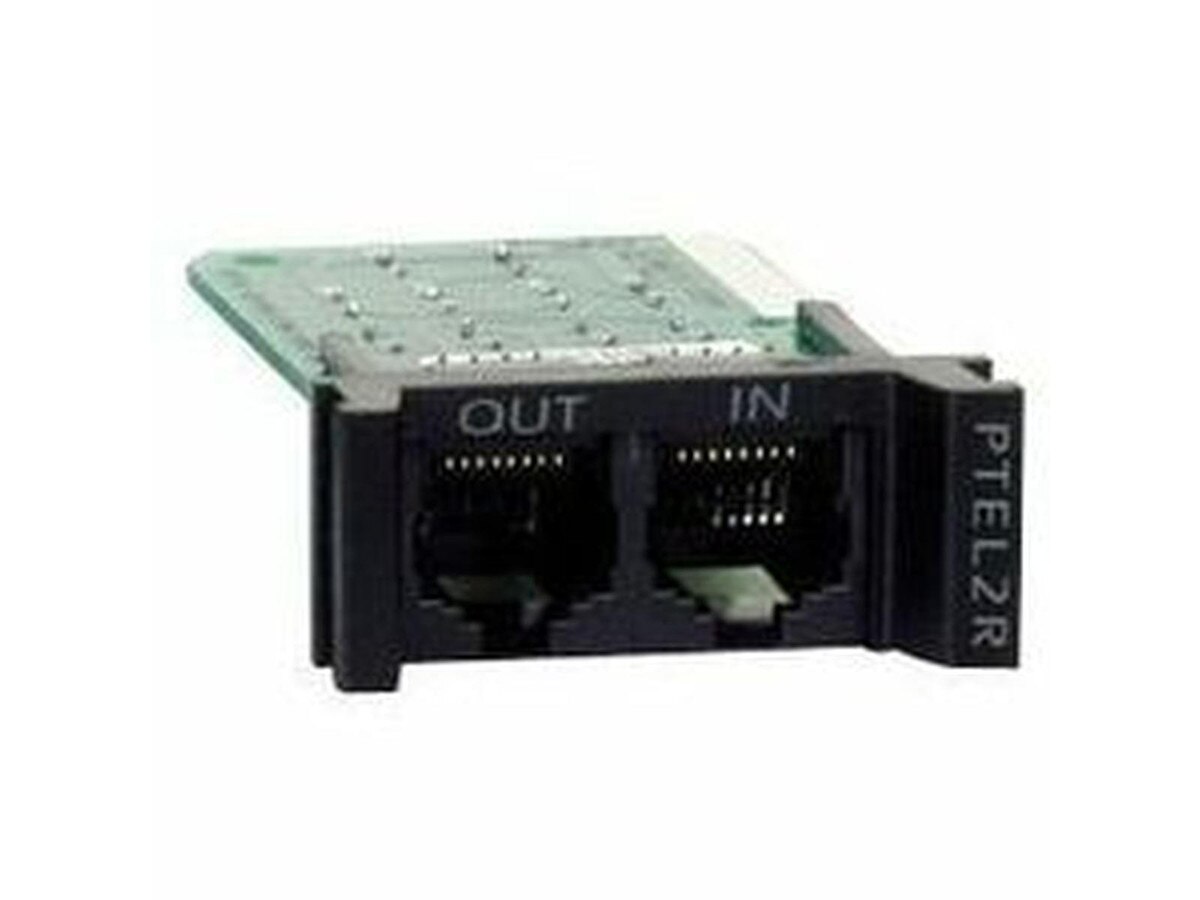

Schneider Electric PTEL2R APC by Replaceable, Rackmount, 1U, 2 Line Telco Surge Protection Module - Modem/Fax/DSL
Manufacturer:Schneider Electric SA
Manufacturer Part Number:PTEL2R
Manufacturer Website Address:http://www.schneider-electric.com
Brand Name:APC by Schneider Electric
Product Line:ProtectNet
Product Name:Replaceable, Rackmount, 1U, 2 Line Telco Surge Protection Module
Marketing Information:
Data line surges make up an overwhelming majority of all surge induced damages where the equipment was thought to be already protected but had a back door such as a modem line unprotected. Network interface cards, in particular, can be destroyed by relatively mild spikes.
According to Ethernet standards (IEEE 802.3), non-AC network electrical hazards include Direct contact between components and power or lightning circuits, static charge buildup on cables and component, high-energy transients coupled onto the local cabling system (those induced by other cables which are installed in the general proximity of network cables or lightning within a mile radius) and potential differences (even from building to building, between safety grounds to which components are connected.)
Product Type:Surge Suppressor/Protector
Dataline Protection:Modem/Fax/DSL
Maximum Surge Current:250 A
Maximum Operating Temperature:113°F (45°C)
Color Family:Black
Product Color:Black
Height:1.7
Width:0.7
Depth:2.7
Weight (Approximate):0.64 oz
Package Contents:
Additional Information:
- Replaceable surge protection modules
- Surge Response Time: 1 ns
Data Lines Protected (multi-line only):
- 1-4 (RJ-11)
- 3-6 (RJ-45)
Certifications & Standards:cUL Recognized
