CPS BMD200A Wireless 4-Valve Digital Manifold

(0)No Reviews yet
ON SALE
Sale
Berry Compliant Product
Berry Compliant
Product In Stock
In Stock
$538.73 $697.68
PSC ID/SKU: 1033652
UPC Code: 750377123788
Sales Unit: Each
MPN: BMD200A
Manufacturer: CPS

In Stock

Available: 1

Add this item to get free shipping!

BMD200A

Back

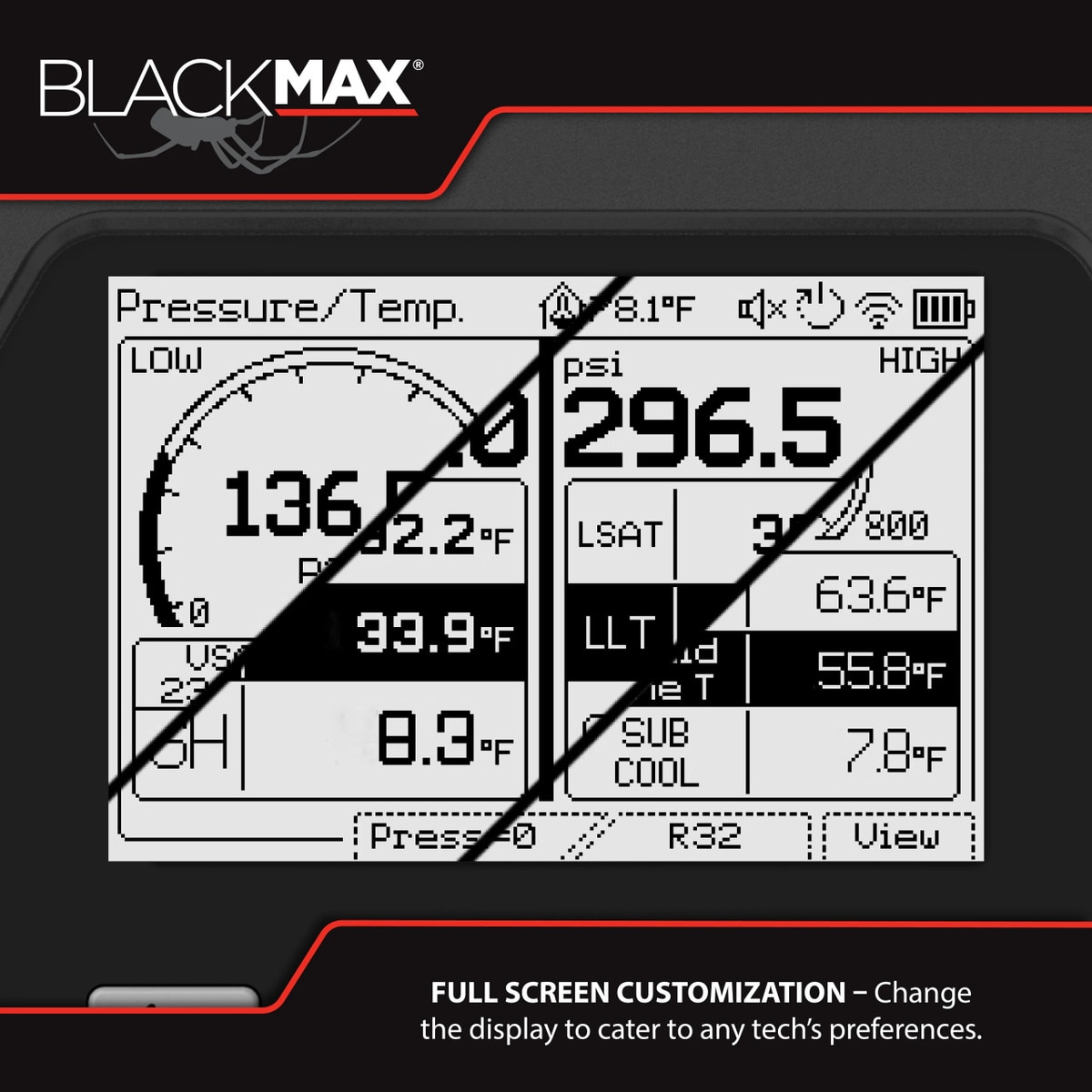

  • CUSTOMIZABLE DISPLAY – SEE IT YOUR WAY – World-first adjustable screen layouts (Classic, Large, Info) let techs choose how data is displayed for faster reads, fewer mistakes, and better decision-making in any lighting condition.
  • A2L-READY & FUTURE-PROOF – Fully A2L compatible and supports 100+ refrigerants with the ability to save up to 10 favorites, keeping you compliant and ready for next-generation systems.
  • FAST, CLEAR READINGS – LESS GUESSWORK – High-contrast, backlit LCD with an intuitive interface delivers easy-to-read measurements, smoother navigation, and quicker diagnostics on every call.
  • WIRELESS CONNECTIVITY WITH CPS LINK PRO – View live system data on your phone from up to 350 ft away—perfect for rooftops, split systems, and large commercial installs.
  • BUILT FOR REAL JOBSITES – IP54 water-resistant design with downward-facing clamp ports and sealed internal circuitry helps protect against moisture, debris, and daily jobsite abuse.
  • COMFORT YOU FEEL ALL DAY – Ergonomic housing with premium overmold provides a secure grip and reduced hand fatigue during long service calls.
  • PROTECTIVE CASE WITH FRONT DOORS – Comes ready to work with a durable nylon soft case. Store and access your gear with you need it with ease
  • TRUSTED BLACKMAX QUALITY – Trusted by HVAC professionals for precision tools that deliver long-term reliability and consistent performance.

Specifications

  • Ports: (3) 1/4″ for suction line, liquid line, and refrigerant recovery/charging; (1) 3/8″ vacuum
  • Display: Customizable LCD Screen
  • Backlight: Adjustable brightness and duration
  • Low Battery Indication: Displays on-screen when batteries need to be replaced
  • Auto Power Off: shuts down after extended timeframe of inactivity (timeframe is adjustable)
  • Battery Type: (3) AA Alkaline Batteries
  • Battery Run Time: Up to 300 hours (backlight off)
  • Wireless Range: Up to 350 Feet line-of-sight
  • Water Resistance: Tested to IP54
  • Refrigerants: Supports over 100 Refrigerants; Select up to 10 Favorites
  • Pressure Range: 800 PSI (max)
  • Pressure Accuracy: ±0.5% (FS)
  • Temperature Measurement Range: -40 °F – 302 °F   /.  -40 °C – 150 °C
  • Temperature Accuracy: ±0.5°C (at 25°C) ±1°F (at 77°F)
  • A2L Compatible
  • Includes: BMD200 Wireless 4-Valve Digital Manifold, BTM100 Wired Temperature Clamps (2 units), AA-Alkaline batteries (3 units), Operator’s Manual, Storage Case.

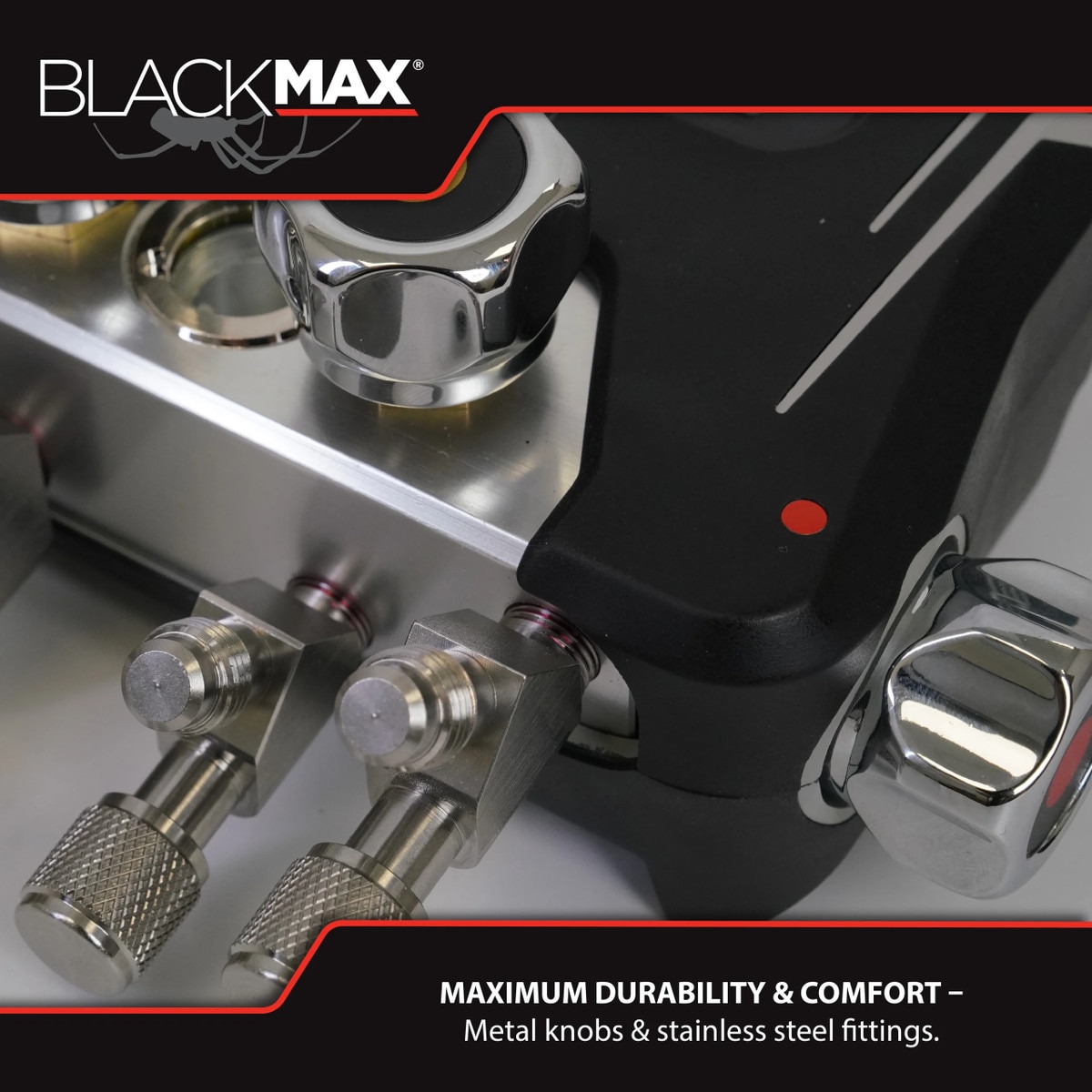

The BlackMax BMD200 Digital Manifold anchors the BlackMax platform, pairing a bold, full-screen customizable display with wireless connectivity and jobsite-tough durability. Built for fast, confident decisions in the field, the BMD200 offers multiple display views, automated calculations and support for more than 100 refrigerants—including A2L-rated options. With premium touch-points like metal control knobs and stainless-steel fittings, it’s designed to feel rock-solid in your hands and deliver reliable performance call after call. The digital manifold comes equipped with a protective case and two BTM100 Wired Temperature Clamps that support accurate data collection, charging, and diagnostics. (Wireless Temperature Clamps sold separately).
